Material: Virgin PTFE + Glass Fiber (15%-40%)
Density: 2.15 – 2.30 g/cm³
Tensile Strength: 25 – 40 MPa
Elongation at Break: 150% – 300%
Water Absorption: ＜0.01%
Dielectric Strength: ≥ 40 kV/mm
Working Temperature: -190°C to +260°C (Peak: +280°C)
Color: White / Customizable
Available Sizes: Customized as per request

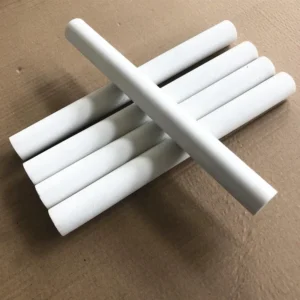

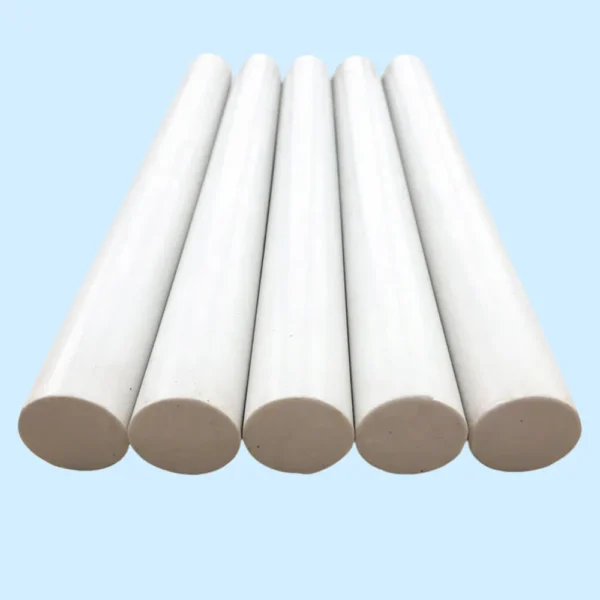

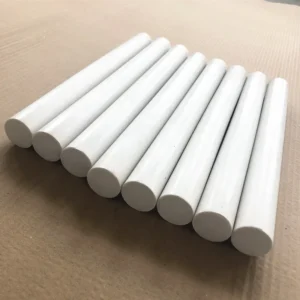

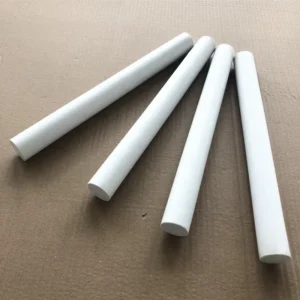

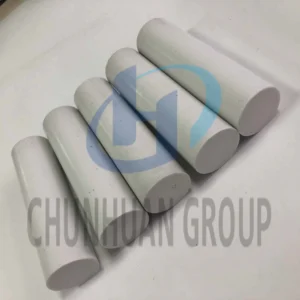

Our Modified Glass Fiber Filled PTFE Rod is engineered for demanding applications where pure PTFE falls short. Reinforced with 15%–40% glass fiber, it delivers exceptional mechanical strength, wear resistance, and dimensional stability, while retaining PTFE’s chemical inertness, non-stick properties, and self-lubrication.
Enhanced Mechanical Performance: Glass fibers dramatically improve compressive strength, stiffness, and creep resistance.
Superior Wear Resistance: Outlasts virgin PTFE by 3–5 times in abrasive or dry running conditions.
Low Friction: Maintains PTFE’s ultra-low friction coefficient (0.1–0.2), ideal for dry-running or lubricated applications.
Exceptional Chemical Resistance: Inert to nearly all corrosive chemicals including strong acids, alkalis, and solvents.
Wide Temperature Range: Operates reliably from -190°C to +260°C, short-term peaks up to 280°C.
Excellent Insulation: High dielectric strength for electrical applications.
Low Water Absorption: <0.01%, ensuring stability in wet or submerged conditions.
Sealing Components: Rod seals, valve stem seals, rotary seals for pumps, compressors, and chemical valves under high pressure and temperature.
Bearings & Bushings: Dry or semi-lubricated sliding bearings in food processing, chemical, and pharmaceutical environments.
Wear Pads & Guides: Conveyor and machine guide rails requiring chemical resistance and low friction.
Valve Seats & Cores: Used in demanding valve applications in chemical and petrochemical industries.
Electrical Insulation Parts: For high voltage, high temperature environments.
Liners for Chemical Equipment: Sleeves for reactor stirrers, pump impellers, etc.
Chemical & Petrochemical
Pharmaceutical & Food Processing
Semiconductor & Electronics
Aerospace & Defense
Machinery & Automotive
Available in various diameters, lengths, and compositions based on your performance requirements (wear rate, hardness, thermal expansion, etc.). CNC machining supported for complex precision parts.
