Material: 100% Virgin PTFE / Modified PTFE with Glass or Carbon Fiber
Color: White
Hole Type: Round / Square / Custom Shapes
Tolerance: ±0.05 mm
Working Temperature: -200°C to +260°C (Up to 300°C short term)
Work Pressure: ≤ 20 MPa (static); dynamic pressure needs evaluation
Friction Coefficient: 0.05 – 0.1
Water Absorption: <0.01%
Tensile Strength: ≥15.0 MPa
Elongation at Break: ≥150%
Density: 2.1–2.3 g/cm³
Dielectric Strength: 10 kV/mm
Certifications: FDA / USP Class VI (Optional)
Customization: Dimensions, hole patterns, surface treatments available

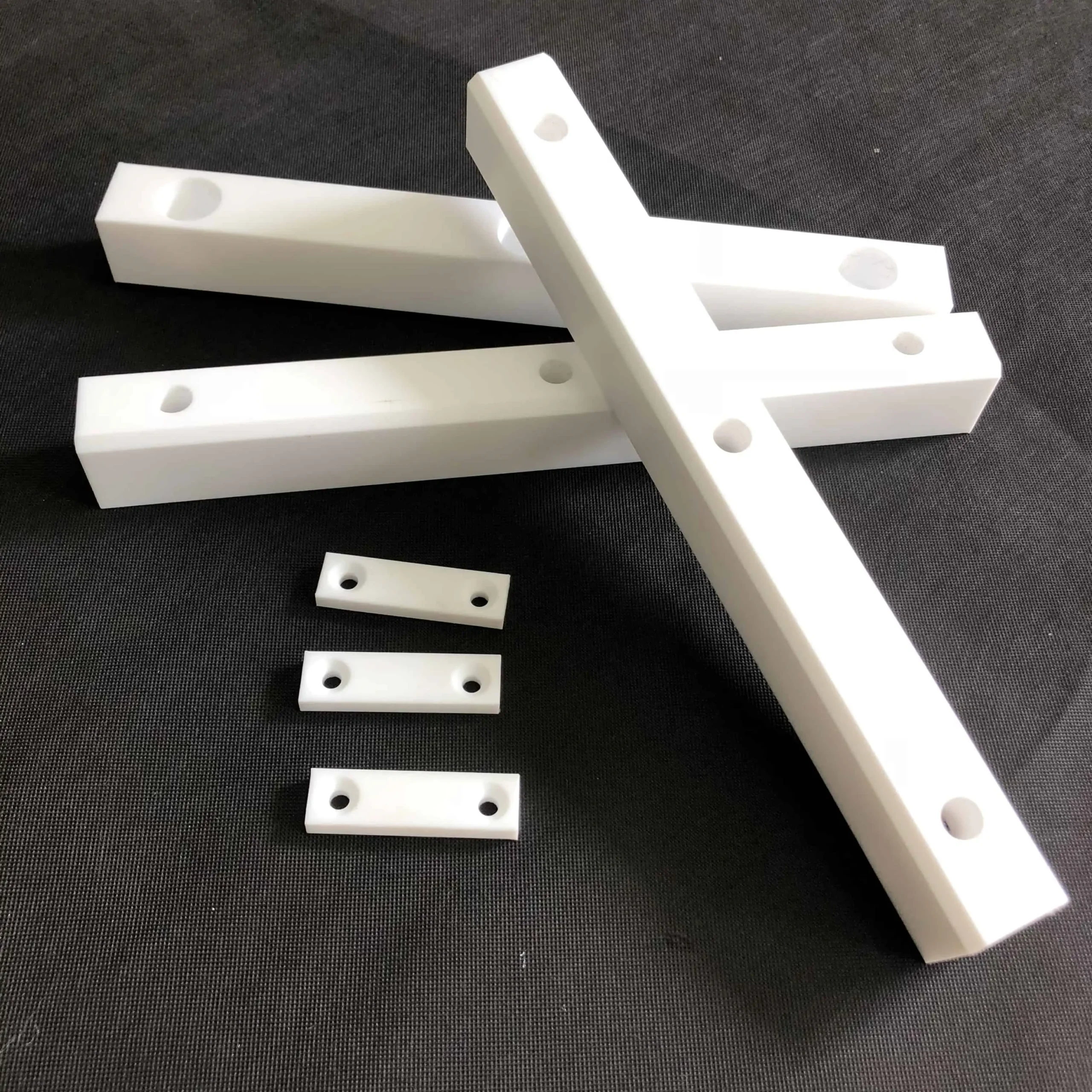

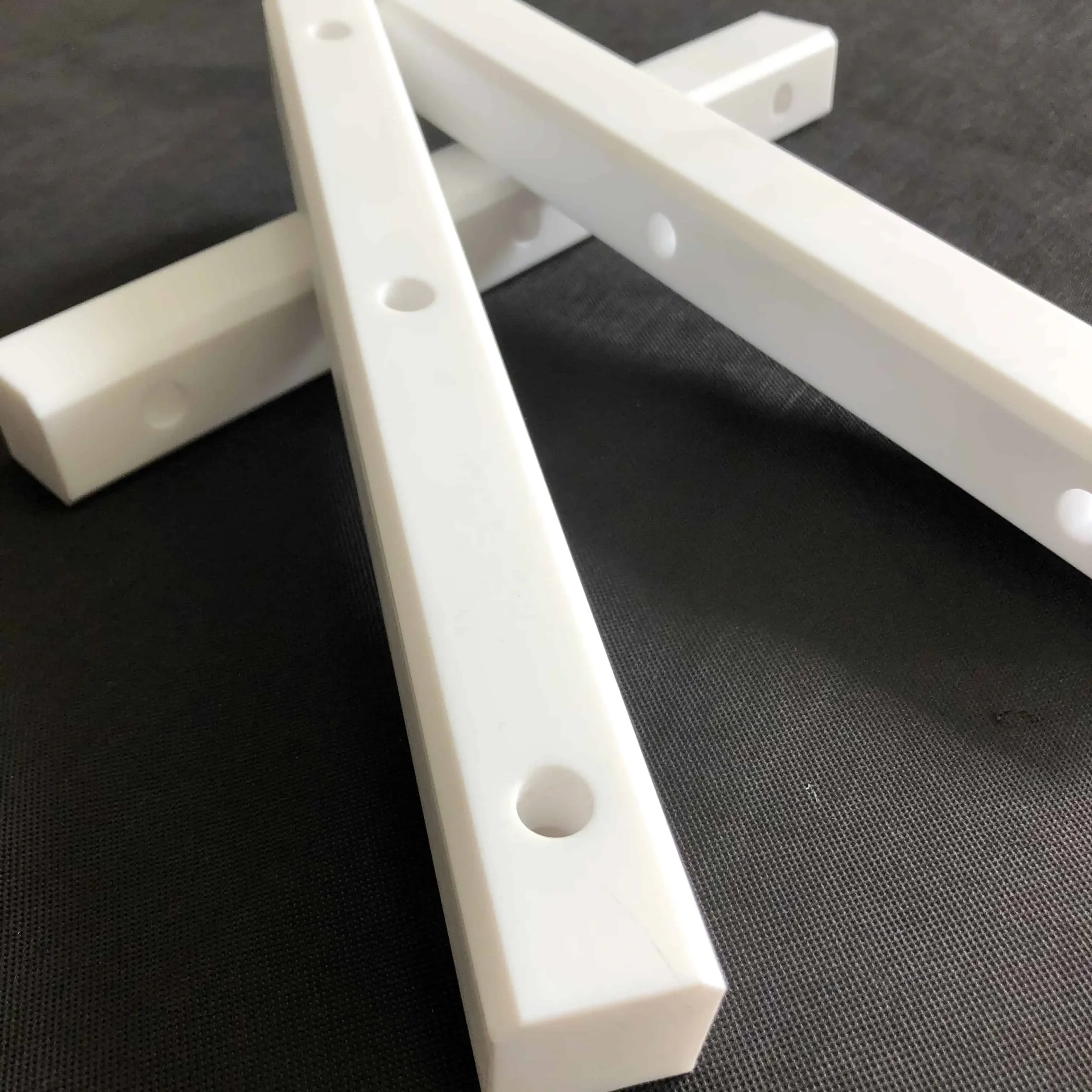

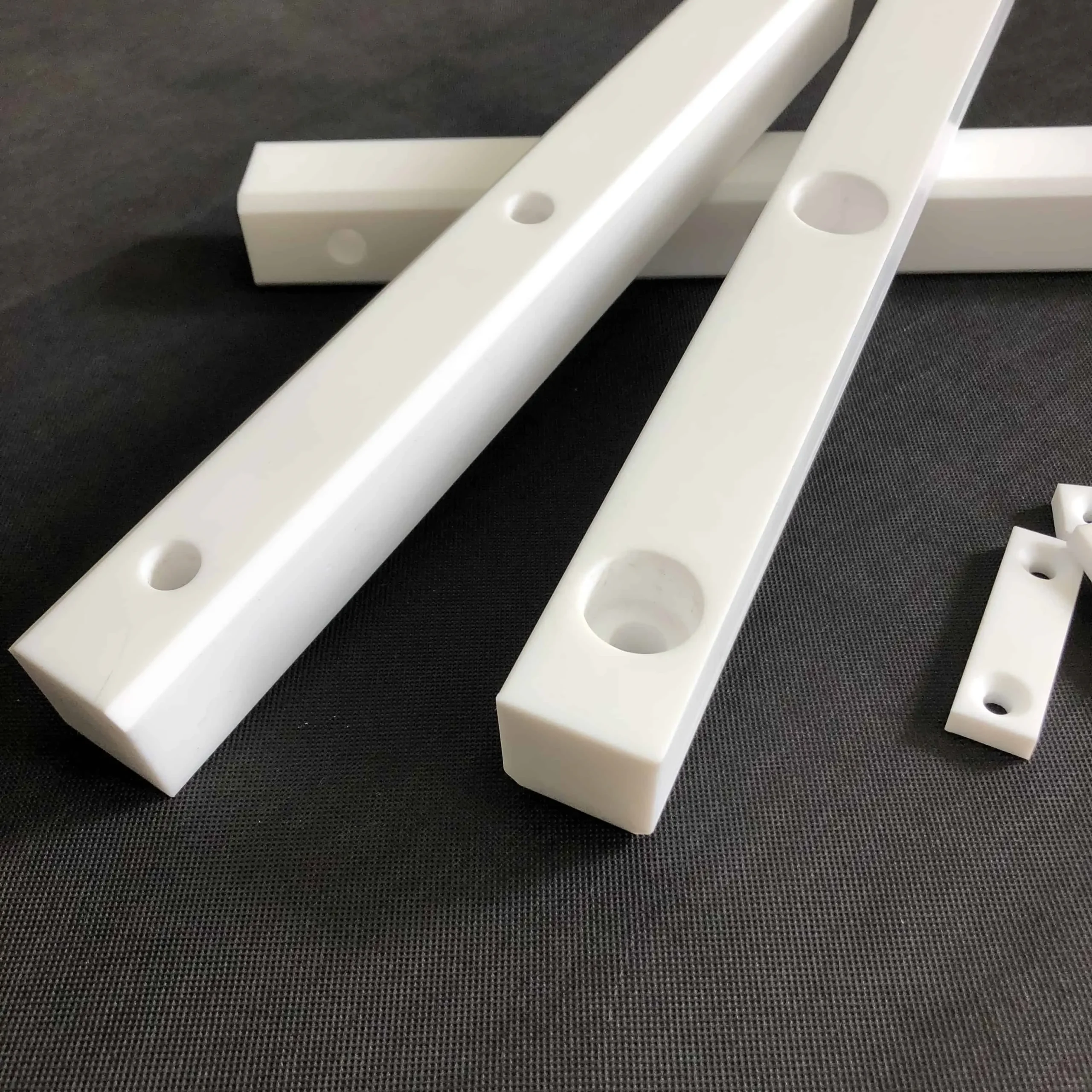

Our PTFE perforated strips are precisely machined from 100% virgin PTFE or reinforced with glass/carbon fiber to meet demanding industrial needs. With excellent thermal and chemical resistance, ultra-low friction (μ = 0.05–0.1), and zero water absorption, these parts are ideal for use in aggressive environments.
Custom hole patterns: round, square, or complex geometries
High tolerance: ±0.05 mm for precision fitting
Operating temperature: -200°C to +260°C (peak +300°C)
Chemically inert: Resistant to strong acids and alkalis
FDA / USP VI compliant material options
Optional enhancements: conductive layers, color coding, structural ribs
Chemical Industry: Sealing gaskets for reactors, anti-corrosion flange pads
Food & Medical: Conveyor guide strips, freeze dryer thermal insulation pads
Semiconductor: Wafer carriers, ultra-pure water filter panels
Mechanical & Hydraulic: Low-friction wear strips, guide bands for cylinders
Outperforms metal parts in corrosion and friction-critical environments
Extends service life by up to 5x
Supports high-purity and cleanroom applications
Fast assembly with pre-drilled holes
Custom sizes and shapes available upon request
