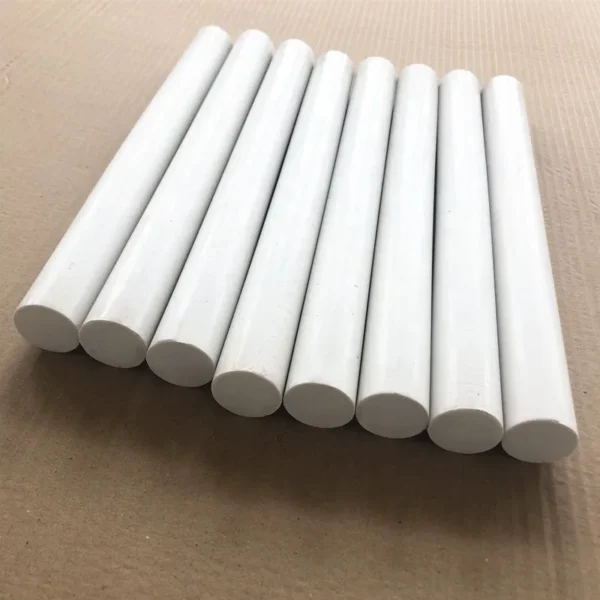

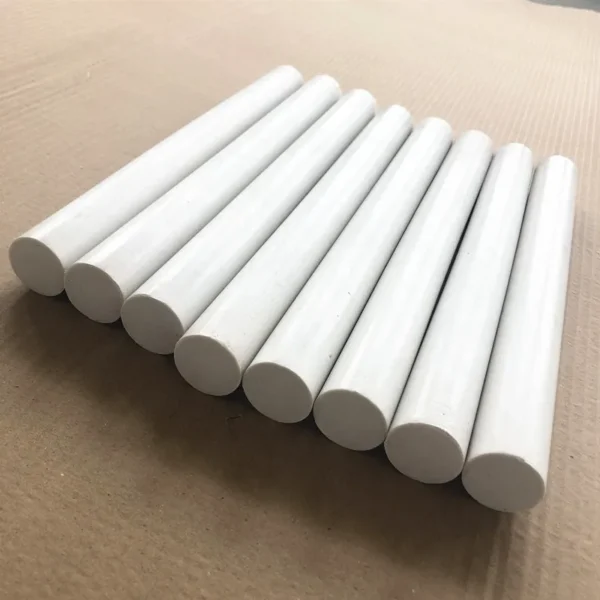

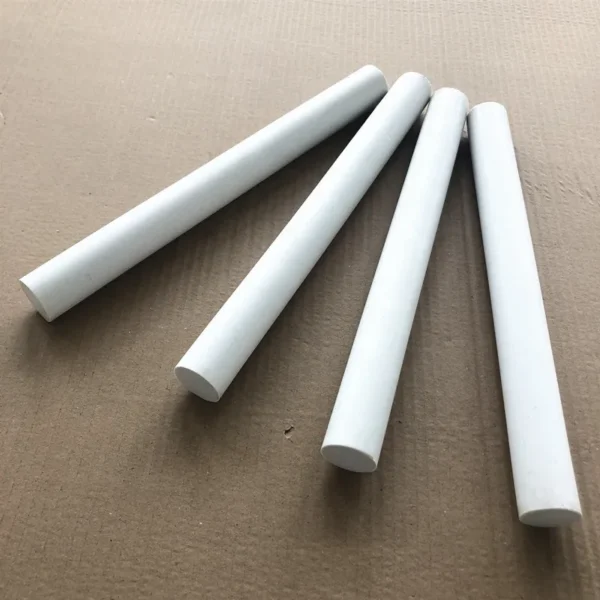

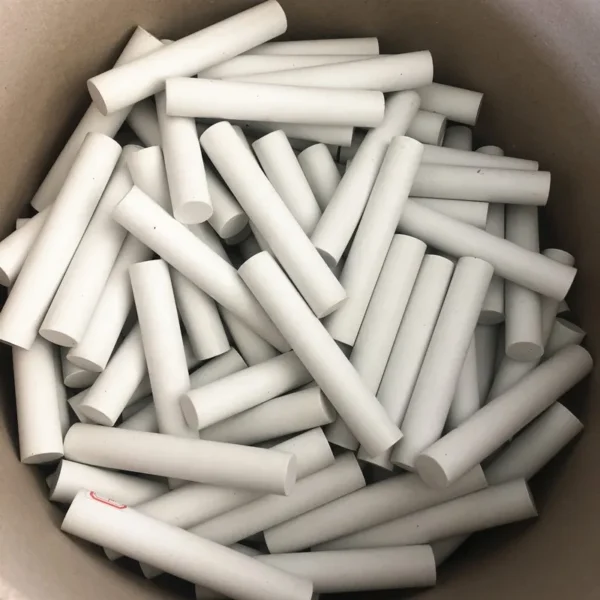

Modified Glass Fiber Filled PTFE Rod

描述

Our Modified Glass Fiber Filled PTFE Rod is engineered for demanding applications where pure PTFE falls short. Reinforced with 15%–40% glass fiber, it delivers exceptional mechanical strength, wear resistance, and dimensional stability, while retaining PTFE’s chemical inertness, non-stick properties, and self-lubrication.

Key Features

• Enhanced Mechanical Performance: Glass fibers dramatically improve compressive strength, stiffness, and creep resistance.

• Superior Wear Resistance: Outlasts virgin PTFE by 3–5 times in abrasive or dry running conditions.

• Low Friction: Maintains PTFE’s ultra-low friction coefficient (0.1–0.2), ideal for dry-running or lubricated applications.

• Exceptional Chemical Resistance: Inert to nearly all corrosive chemicals including strong acids, alkalis, and solvents.

• Wide Temperature Range: Operates reliably from -190°C to +260°C, short-term peaks up to 280°C.

• Excellent Insulation: High dielectric strength for electrical applications.

• Low Water Absorption: <0.01%, ensuring stability in wet or submerged conditions.

Applications

• Sealing Components: Rod seals, valve stem seals, rotary seals for pumps, compressors, and chemical valves under high pressure and temperature.

• Bearings & Bushings: Dry or semi-lubricated sliding bearings in food processing, chemical, and pharmaceutical environments.

• Wear Pads & Guides: Conveyor and machine guide rails requiring chemical resistance and low friction.

• Valve Seats & Cores: Used in demanding valve applications in chemical and petrochemical industries.

• Electrical Insulation Parts: For high voltage, high temperature environments.

• Liners for Chemical Equipment: Sleeves for reactor stirrers, pump impellers, etc.

Industries Served

• Chemical & Petrochemical

• Pharmaceutical & Food Processing

• Semiconductor & Electronics

• Aerospace & Defense

• Machinery & Automotive

Customization

Available in various diameters, lengths, and compositions based on your performance requirements (wear rate, hardness, thermal expansion, etc.). CNC machining supported for complex precision parts.
