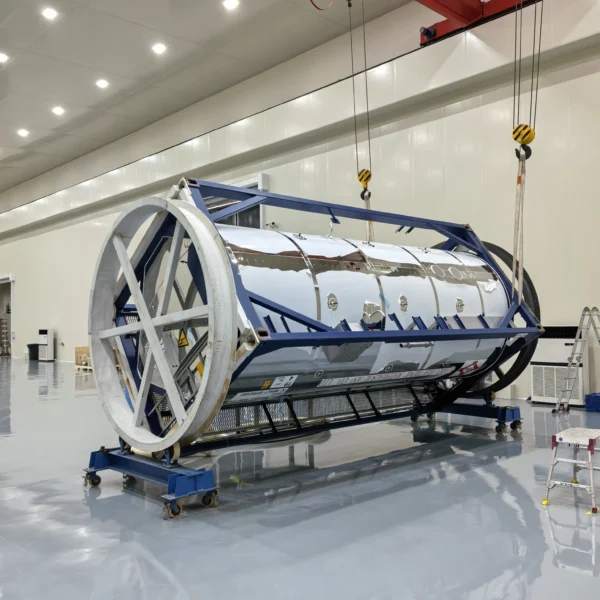

Fluorine-Lined Tank

El Fluorine-Lined Tank is engineered for the safe storage and handling of highly corrosive media, including strong acids, bases, and organic solvents. It is widely applied in chemical, pharmaceutical, electroplating, and new energy industries where conventional steel tanks cannot withstand aggressive media.

The tank combines a carbon steel or stainless steel shell with a PTFE or PFA inner lining, offering a perfect balance of mechanical strength and chemical inertness. The lining prevents corrosion, contamination, and material adhesion while allowing easy cleaning and long-term durability. Tanks can be customized with flanged openings, manholes, heating/cooling jackets, and agitators to meet specific industrial process needs.

Product Features

1. Unmatched Corrosion Resistance

   • Full PTFE or PFA lining provides a complete chemical barrier against acids, bases, solvents, and mixed media.

   • Eliminates risks of metal corrosion and chemical leakage.

2. Strong Yet Inert Structure

   • Steel shell delivers mechanical strength and pressure resistance.

   • Fluoroplastic lining ensures smooth, non-stick surface for full material drainage and easy cleaning.

3. Wide Temperature & Safety Performance

   • Maintains stability from -196°C to +180°C depending on lining material.

   • Inherent flame retardancy of fluoroplastics enhances operational safety.

4. Long Lifespan & Cost Efficiency

   • Extended service life in corrosive conditions reduces maintenance, replacement, and downtime costs.

5. Highly Customizable Design

   • Available in multiple volumes, pressure ratings, opening types, heating/cooling jackets, and integrated agitators.

   • Fully adaptable to customer-specific chemical, temperature, and pressure requirements.

Aplicaciones

• Chemical Industry: Storage and handling of sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, mixed acids, chlor-alkali, bromine, and other aggressive chemicals.

• Pharmaceutical & Biotech: Storage of high-purity intermediates, corrosive solvents, and reaction products.

• Electroplating & Surface Treatment: Tanks for chromic acid, nickel plating solutions, acid copper solutions, and electrolytes.

• Wet Metallurgy & New Energy: Storage of corrosive leach solutions, extraction solutions, and electrolytes for lithium battery materials.

• Environmental & Waste Treatment: Circulation tanks for acidic/alkaline gas scrubbing and wash towers.

• Fine Chemicals: Storage vessels for halogenated hydrocarbons, aromatics, and strong corrosive catalysts.

Ventajas

• Advanced Manufacturing: Seamless lining with molding, rotational casting, or plate welding; reinforced critical areas prevent leakage.

• Strict Quality Control: 100% defect-free lining verified by spark testing; certified according to pressure vessel standards.

• Superior Surface Properties: Ultra-smooth, non-stick inner walls reduce contamination and facilitate cleaning.

• Maintenance & Repair: Lining can be repaired locally, avoiding total tank replacement.

• Full-Service Support: Complete lifecycle support including process consulting, design, manufacturing, installation, and maintenance guidance.

Conclusión

El Fluorine-Lined Tank offers exceptional corrosion resistance, mechanical strength, and operational safety for handling the most aggressive chemicals. Its combination of PTFE/PFA lining and steel shell ensures long service life, zero contamination, and high purity for chemical, pharmaceutical, electroplating, fine chemical, and new energy applications. Customizable design, advanced manufacturing, and comprehensive support make it an ideal solution for demanding industrial processes.
