Teflon Lined PTFE Pipe Solutions for Corrosive Applications

Teflon lined PTFE pipes are designed for transporting highly corrosive, aggressive, or high-purity fluids where conventional metal piping may not provide sufficient chemical resistance. By combining the mechanical strength of a metal pipe with a corrosion-resistant PTFE lining, PTFE lined piping systems provide a reliable solution for demanding chemical processing and industrial applications.

Notre Teflon lined PTFE pipe solutions are available for chemical processing, pharmaceutical manufacturing, semiconductor applications, food and beverage processing, water treatment, and other industries where corrosion resistance and material compatibility are critical.

From standard PTFE lined pipes to customized PTFE lined piping systems, the right lining material, pipe structure, connection method, and operating specifications can be selected according to the application.

What Is a Teflon Lined PTFE Pipe?

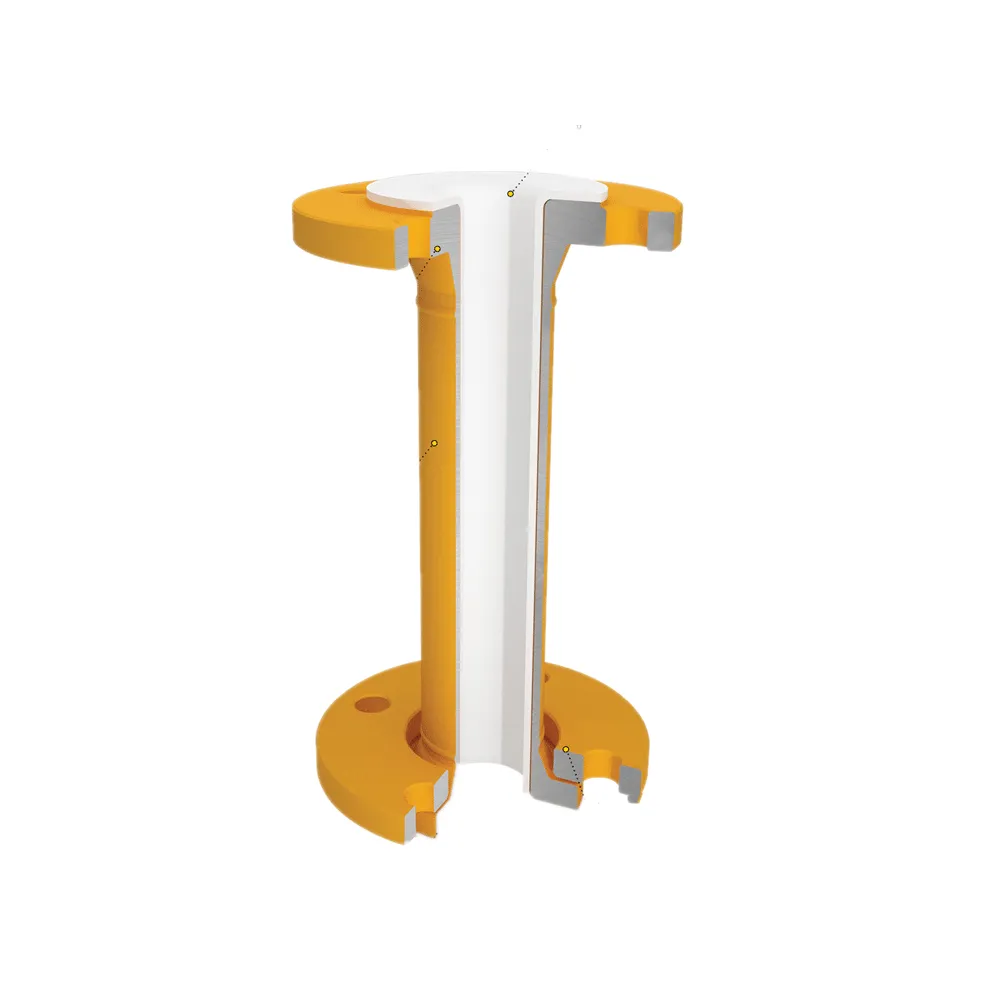

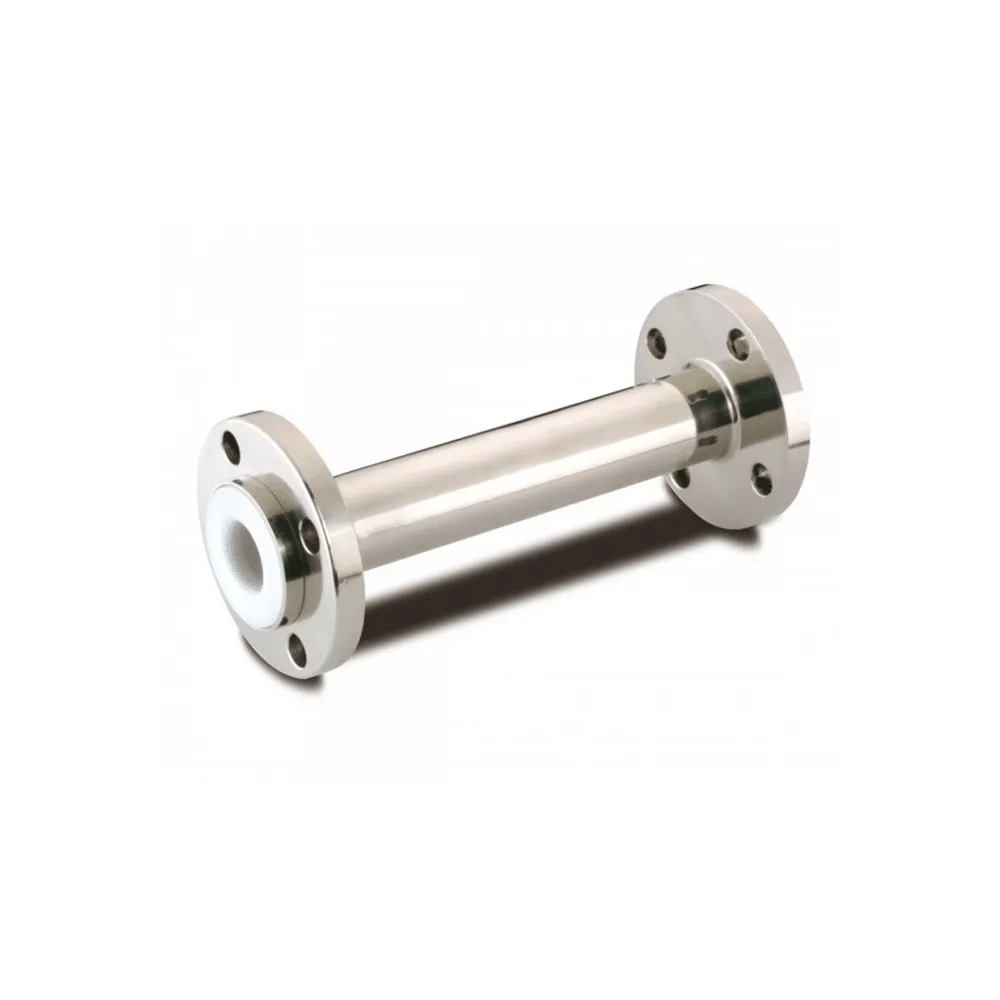

A Teflon lined PTFE pipe consists of a metal pipe or fitting with an internal PTFE lining. The outer pipe provides mechanical support, while the PTFE layer provides chemical resistance and protects the piping from direct contact with corrosive media.

PTFE, or polytetrafluoroethylene, is widely used in chemical and industrial applications because of its excellent resistance to many aggressive chemicals and its low-friction surface.

Compared with conventional unlined metal piping, a PTFE lined pipe can provide an additional layer of protection when the transported medium is highly corrosive or chemically aggressive.

Que signifie « doublé en PTFE » ?

PTFE, or Polytetrafluoroethylene, is a unique synthetic fluoropolymer of tetrafluoroethylene. Known for its incredible non-reactive properties, high melting point, and exceptionally low friction, PTFE is an indispensable material in many applications. The term “Teflon” is actually a brand name for PTFE, and when we refer to “Teflon lined,” it implies that a layer of PTFE has been applied to another material, typically metal, to enhance its properties significantly.

Chemical Composition and Properties

Understanding the chemical structure of PTFE is crucial to appreciating its unique properties. PTFE is composed of carbon and fluorine atoms, forming strong bonds that contribute to its chemical inertness. This composition results in a material that is resistant to most chemicals, making it an ideal choice for lining applications where chemical exposure is a concern.

Historical Development and Innovations

The discovery of PTFE dates back to 1938, when chemist Roy Plunkett stumbled upon it accidentally. Since then, the material has undergone significant advancements, leading to various forms and applications. Innovations in PTFE technology have expanded its use beyond traditional applications, with ongoing research focused on enhancing its characteristics further.

Comparison with Other Lining Materials

While PTFE is a popular choice for lining, it’s essential to compare it with other materials like rubber, glass, and stainless steel. Each material has its advantages, but PTFE often surpasses them in terms of chemical resistance and temperature resilience. Comparing these materials helps industries make informed decisions when selecting the most suitable lining for their needs.

Advantages of PTFE Lined Materials

The advantages of PTFE-lined materials are numerous, making them a preferred choice across various industries. Here are some of the key benefits:

résistance chimique

One of the most significant advantages of PTFE-lined materials is their exceptional resistance to corrosive chemicals. This property makes them ideal for transporting aggressive substances without degradation. Industries such as chemical processing and pharmaceuticals benefit greatly from this resistance, as it ensures the safe handling and transfer of potentially hazardous materials.

Temperature Resilience

PTFE-lined materials can withstand an impressive range of temperatures, maintaining their integrity in both extreme cold and heat. This resilience is crucial in applications where temperature fluctuations are common, such as in the oil and gas sector. The ability to perform reliably under varying thermal conditions ensures the longevity and efficiency of PTFE-lined products.

Surface antiadhésive

The non-stick surface provided by the Teflon lining is another notable advantage. This property reduces friction, improving flow efficiency and preventing material build-up. In industries like food and beverage, where product purity is paramount, the non-stick nature of PTFE helps maintain cleanliness and reduces the risk of contamination.

Durabilité et longévité

PTFE-lined materials are renowned for their durability and long-lasting performance. They require minimal maintenance, contributing to cost savings over time. The robust nature of PTFE ensures that it can withstand the rigors of demanding applications, providing a reliable solution that stands the test of time.

PTFE Lined Pipe vs. Conventional Metal Pipe

The appropriate piping material depends on chemical compatibility, temperature, pressure, mechanical requirements, and operating conditions.

Applications of PTFE Lined Products

PTFE-lined products find applications in a wide array of industries, thanks to their versatile nature and exceptional properties. Let’s explore some common uses:

PTFE Lined Pipes and Fittings

PTFE-lined pipes, spools, and fittings are essential components in industries that handle corrosive substances. They offer a safe and efficient means of transporting chemicals without risking damage to the pipes.

• Traitement chimique : PTFE-lined pipes are ideal for transferring acids, bases, and solvents, providing a secure solution that prevents leaks and contamination.
• Pharmaceuticals: The non-reactive nature of PTFE makes it suitable for transporting sensitive pharmaceutical compounds, ensuring product integrity and safety.
• Food and Beverage: PTFE’s non-stick property ensures that materials flow smoothly, reducing contamination risks and maintaining product quality.

PTFE Lined Pipe Thickness and Temperature Ratings

The thickness of the PTFE lining is a critical factor in determining its performance. Typically, a thicker lining offers better protection against wear and chemical attack, extending the lifespan of the pipes. PTFE-lined pipes are designed to operate at temperatures ranging from -200°C to 260°C, making them versatile for various applications.

PTFE Lined Tanks and Containers

In addition to pipes, PTFE lining is used in tanks and containers to store corrosive chemicals safely. These tanks are commonly found in industries such as:

• Oil and Gas: PTFE-lined tanks are essential for storing crude oil and other corrosive substances, preventing leaks and ensuring safety.
• Water Treatment: PTFE-lined tanks help in treating and storing water without contamination, maintaining water quality and safety.

PTFE Lined Equipment and Autoclaves

PTFE-lined autoclaves are used in laboratories and industrial settings to sterilize equipment. The lining helps in maintaining a sterile environment by preventing chemical reactions with the equipment’s metal surfaces, ensuring accurate and reliable results.

PTFE Lined Fittings and Accessories

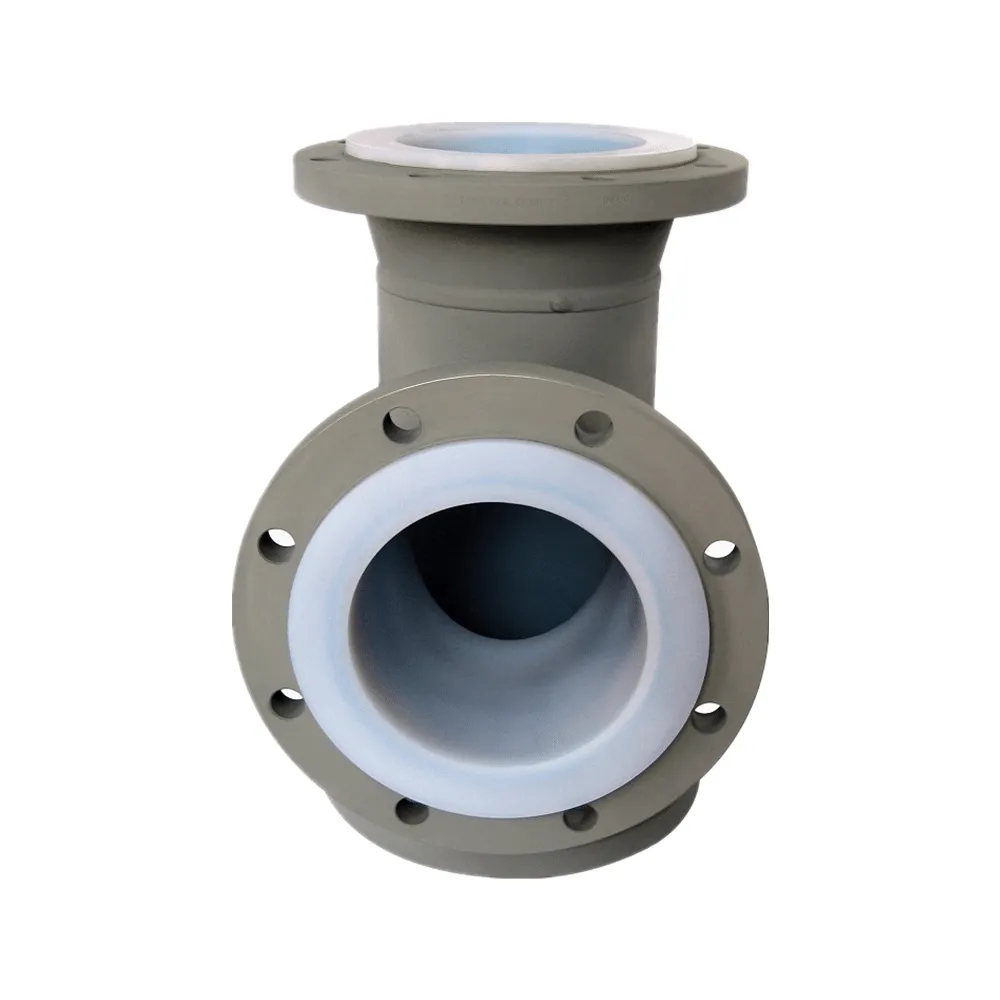

PTFE-lined fittings, such as tees, elbows, and reducers, play a crucial role in connecting different sections of piping. These fittings ensure leak-proof connections and maintain the integrity of the entire system.

Special PFA/PTFE Lined Fittings

PFA (Perfluoroalkoxy) is another fluoropolymer similar to PTFE but with greater flexibility. Special PFA/PTFE-lined fittings are available for applications requiring both flexibility and chemical resistance, providing a tailored solution for unique operational needs.

PTFE Lined Bellows and Compensators

These components are used to absorb thermal expansion in piping systems. They prevent stress and potential damage by accommodating movement within the pipes, ensuring system stability and longevity.

Design Considerations for PTFE Lined Fittings

When designing PTFE-lined fittings, several factors need to be considered, such as pressure ratings, chemical compatibility, and temperature requirements. Proper design ensures that the fittings perform optimally in their intended applications, providing a reliable and efficient solution.

Chemical Resistance of PTFE Lined Piping

Chemical resistance is one of the primary reasons PTFE is selected as a lining material for industrial piping. PTFE lined pipes can be considered for applications involving aggressive chemicals, acids, solvents, and other challenging process media.

However, chemical compatibility should always be evaluated against the actual fluid composition, concentration, temperature, pressure, and operating conditions.

For industrial projects, selecting a PTFE lined piping system should therefore involve more than simply choosing a pipe size. The lining material, temperature rating, pressure conditions, connection design, and chemical compatibility should all be reviewed before installation.

Choisir les bons produits doublés de PTFE

Selecting the right PTFE-lined products is critical to ensuring their effectiveness and longevity. Consider the following factors when making your choice:

Compatibilité chimique

Ensure that the PTFE lining is compatible with the chemicals it will come into contact with. Chemical compatibility is vital to prevent degradation and ensure the lining performs as expected, maintaining system integrity.

Temperature and Pressure Requirements

Choose products that can withstand the operating temperatures and pressure requirements of your application. Proper evaluation of these factors ensures that the PTFE-lined products can handle the demands of your specific use case, providing a reliable and durable solution.

Manufacturer Reputation and Quality Assurance

Opt for products from reputable manufacturers known for quality and reliability. A manufacturer’s reputation and quality assurance practices are indicative of the product’s performance and longevity, making it essential to choose a trusted supplier.

Customization and Technical Support

Consider manufacturers and distributors that offer customization and technical support. Custom solutions tailored to your specific needs can enhance the performance of PTFE-lined products, while technical support ensures seamless integration and operation.

Leading PTFE Lined Product Manufacturers

Several manufacturers specialize in PTFE-lined products, offering a range of options to meet different needs. Here are some leading manufacturers to consider:

• Baum PTFE Lined Pipe: Known for its durable and reliable PTFE-lined pipes, Baum offers solutions that cater to various industry requirements, ensuring quality and performance.
• Chemtite Tuyaux revêtus de PTFE: With a wide selection of PTFE-lined products, Chemtite serves diverse industries with innovative solutions that address specific operational challenges.
• Resistoflex PTFE Lined Fittings: Specializing in high-quality PTFE-lined fittings and accessories, Resistoflex provides products that ensure system integrity and efficiency.

PTFE Lined Pipe Distributors

Finding the right distributor is crucial for obtaining quality PTFE-lined products. Distributors often provide additional services like custom fabrication and technical support. Some notable distributors include:

• China PTFE Lined Pipe Suppliers: Offering competitive prices and a wide range of products, these suppliers cater to global markets with reliable and cost-effective solutions.
• Local Distributors: Often provide quick delivery and personalized service, ensuring that you receive the products and support you need promptly and efficiently.

Frequently Asked Questions

What is a PTFE lined pipe?

A PTFE lined pipe is a pipe with an internal PTFE lining designed to provide chemical resistance while the outer pipe provides mechanical support.

What is Teflon lined pipe used for?

Teflon lined pipes are commonly considered for chemical processing, pharmaceutical, semiconductor, water treatment and other industrial applications involving aggressive or corrosive media.

Is PTFE resistant to chemicals?

PTFE provides resistance to many chemicals, but compatibility depends on the specific chemical, concentration, temperature and operating conditions.

What is the difference between PTFE lined pipe and plastic pipe?

PTFE lined pipe combines a structural outer pipe with a PTFE inner lining, whereas a conventional plastic pipe relies primarily on the plastic material itself for structural performance.

Can PTFE lined pipes be customized?

Yes. Depending on the manufacturer and application, pipe dimensions, lining specifications, fittings, flange configurations and other requirements can be customized.

What industries use PTFE lined piping?

Common applications include chemical processing, pharmaceutical manufacturing, semiconductor production, water treatment and other industries requiring corrosion-resistant process piping.

How do I select a PTFE lined pipe?

Consider the pipe size, transported medium, chemical concentration, temperature, pressure, connection requirements and applicable industry standards.

How long does a PTFE lined pipe last?

Service life depends on the chemical medium, temperature, pressure, mechanical conditions, installation quality and operating environment. A project-specific assessment is recommended.

Conclusion

PTFE-lined products are indispensable in industries where chemical resistance and temperature resilience are paramount. From piping systems to storage tanks, these products ensure safe and efficient operation across various applications. By understanding the properties and uses of PTFE-lined materials, you can select the right products to meet your specific needs.

Whether you are looking for PTFE-lined pipes, fittings, or tanks, partnering with reputable manufacturers and distributors will ensure you receive high-quality products that stand the test of time. The right choice of PTFE-lined products not only enhances operational efficiency but also guarantees safety and reliability in demanding environments.
